Ethernet Expansion Board

PEB-C-010 Overview

The PEB-C-010 Ethernet Expansion Board is a PHYTEC accessory designed to expand the Ethernet capabilities of the phyBOARD-Electra AM64x. It allows developers to evaluate industrial Ethernet communication protocols—such as EtherCAT and PROFINET—directly on their development setup.

This guide explains how to connect, configure, and use a single PEB-C-010 board to test the additional Ethernet PHY interfaces.

For ordering information and detailed specifications, visit: https://www.phytec.com/product/ethernet-expansion-board/

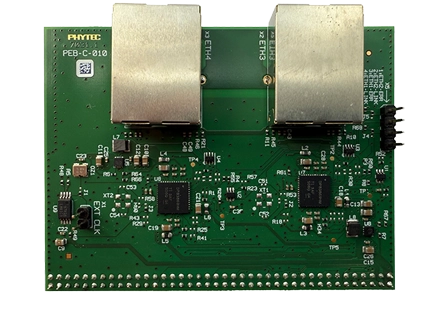

Front view of the PEB-C-010 Ethernet Expansion Board

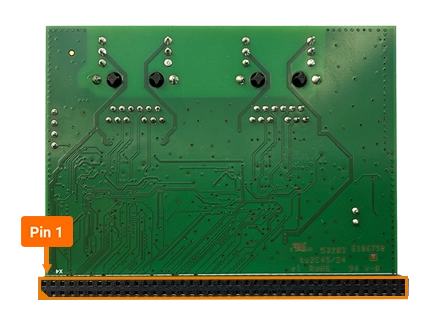

Back view of the PEB-C-010 Ethernet Expansion Board

Key Features

Adds two additional industrial Ethernet ports (ETH3 and ETH4)
Supports EtherCAT and PROFINET evaluation

Attaching the phyBOARD-Electra AM64x and PEB-C-010

Required Components

phyCORE-AM64x System on Module (SoM)
phyBOARD-Electra AM64x Carrier Board
PEB-C-010 Ethernet Expansion Board
12 V Barrel Power Adapter (included with the Development Kit)

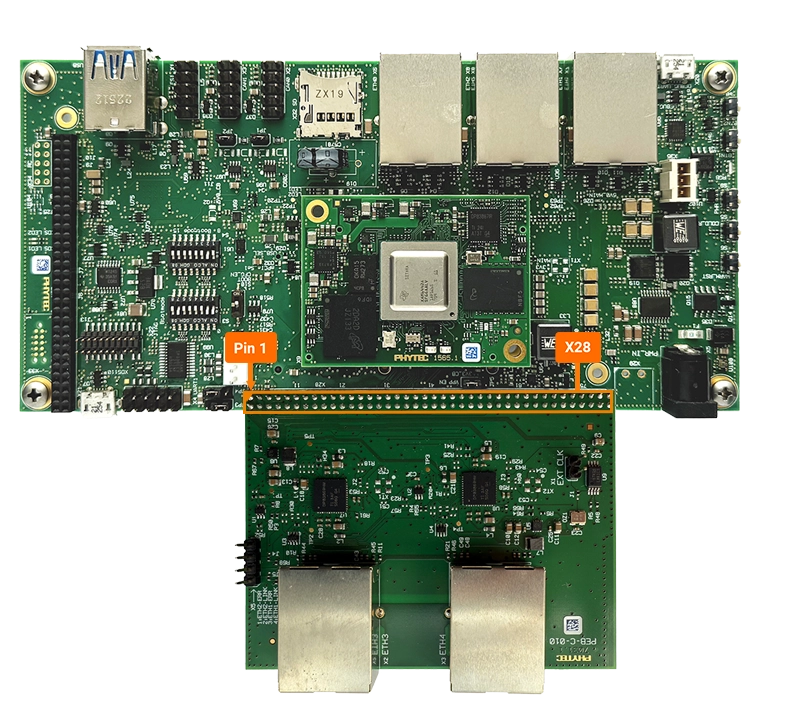

The PEB-C-010 is designed to plug directly into the phyBOARD-Electra AM64x via the X28 expansion header.

Software Setup – Enabling the Overlay

To activate the additional Ethernet interfaces provided by the PEB-C-010, a Device Tree Overlay must be enabled. This overlay file is included in the PHYTEC Linux BSP for the phyCORE-AM64x.

Note

See Build the BSP for instructions on building the BSP.

To enable the overlay, interrupt the boot process at the U-Boot prompt and enter the following commands:

sh-uboot:~# setenv overlays k3-am642-phyboard-electra-peb-c-010.dtbo
sh-uboot:~# saveenv
sh-uboot:~# boot
