Display

The i.MX RT1170 processor includes a MIPI DSI-2 display interface, supported and validated with the RK055HDMIPI4MA0 panel. This display shield is enabled by default when building the BSP-Zephyr-RT1170-PD26.1.0 example firmware via the -DSHIELD=rk055hdmipi4ma0 west build argument, as described in the Building the Firmware guide.

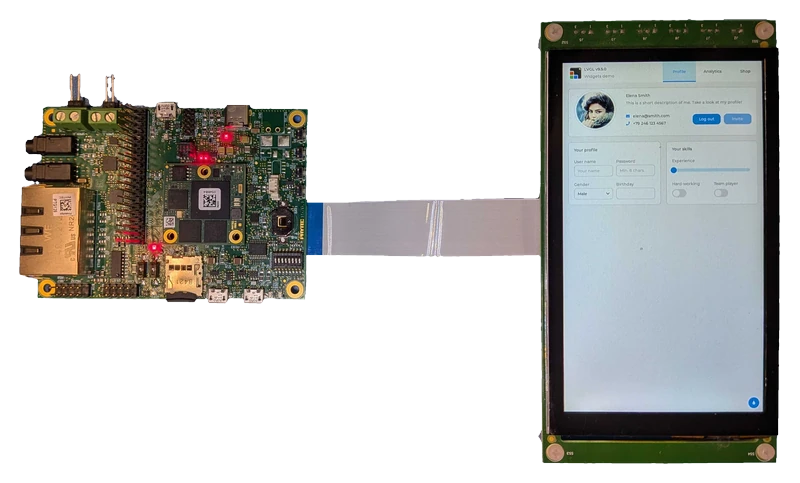

../_images/phyBOARD_with_RK055HDMIPI4MA0.webp

For detailed hardware-level information, refer to the 8.2 MIPI-DSI chapter in the Hardware Manual.

Requirements

RK055HDMIPI4MA0 5.5 inch 720 x 1280 TFT LCD display with touch sensitive overlay
- RK055HDMIPI4MA0

Usage

Connect the RK055HDMIPI4MA0 display panel to connector X3 on the phyBOARD-Atlas RT1170 carrier board to test it. Once flashed with firmware built using the -DSHIELD=rk055hdmipi4ma0 argument, the panel will initialize automatically at boot.

Note
