Booting Essentials

This section of the product wiki contains guides to update and boot from different boot sources on the phyCORE-AM62x SOM.

Boot Modes

The phyCORE-AM62x development kit supports booting from many different interfaces. By default, the developement kit is set to boot from the micro-SD card. To change the boot device, DIP switches S5 and S6 can be used. Boot switches should be changed with power off.

Boot Settings (S7)

ON

OFF

Enables the DIP switches (S5, S6) to override default boot sequence

Disables the DIP switches (S5, S6). Allowing the SOM to boot with default boot sequence
Boot Settings

SD Card

eMMC

OSPI

UART

USB/DFU

Network

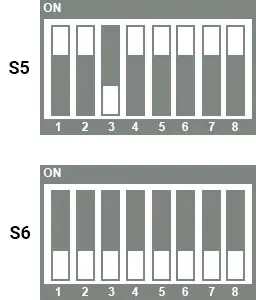

JTAG (No Boot)

image-boot-sd

image-boot-emmc

image-boot-ospi

image-boot-uart

image-boot-usb

image-boot-network

image-boot-jtag

Tip

Note the orientation of the physical switches and the switch diagrams here, the setting can easily be flipped depending on the orientation of the development kit. Look for the “ON” marking to clarify switch positions.

phyCORE-AM62x Boot Mode Switches phyBOARD-AM62x Boot Mode Switches Close-up
