Power LEDs

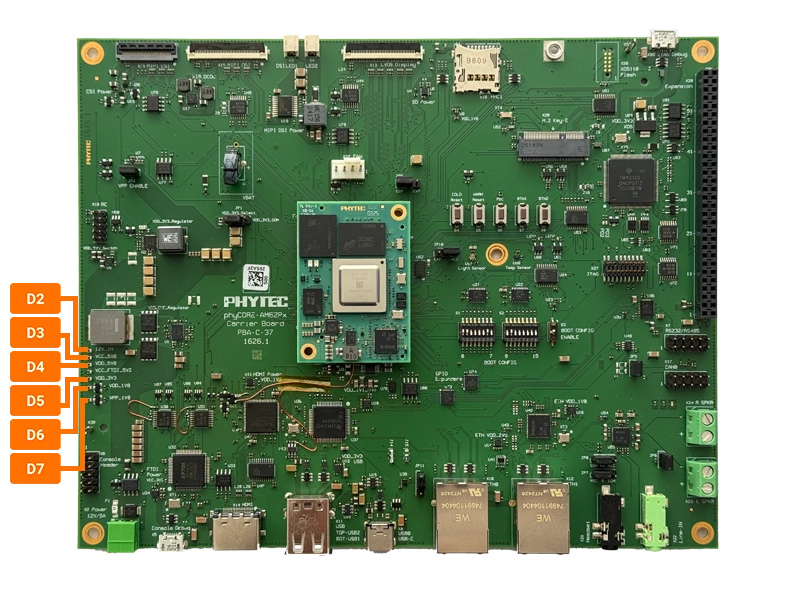

The phyBOARD-Lynx AM62Px Carrier Board includes a set of green LEDs that indicate the presence of power on the various supply rails. These LEDs are not user programmable and are present for hardware debugging purposes only.

For LED designators and the corresponding power rails they indicate, refer to the Hardware Manual or the development kit schematic.
