Power and Reset Buttons

The phyCORE-AM67x development kit provides a selection of buttons to perform power related functions. To learn more information about the phyCORE-AM67x reset interfaces, please see section 5.3 in the Hardware Manual.

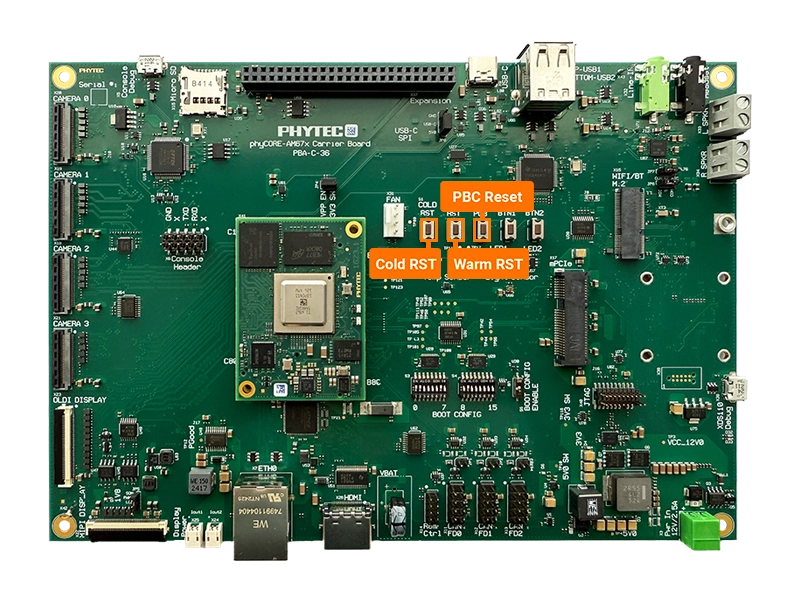

phyCORE-AM67x Power and Reset Buttons
Button Functions

Button

Description

S1

Cold Reset

  • MCU Domain Cold Reset

S2

Warm Reset

  • MCU and Main Domain Warm Reset

S8

PBC Reset

  • Push Button Controller Reset

  • Push to power off, then hold to power back on
