Booting Essentials

This section of the product wiki contains guides to update and boot from different boot sources on the phyCORE-AM62x SOM.

Boot Modes

The phyCORE-AM62x development kit supports booting from many different interfaces. By default, the developement kit is set to boot from the micro-SD card. To change the boot device, DIP switches S5 and S6 can be used. Boot switches should be changed with power off.

Boot Settings (S7)

ON

OFF

Enables the DIP switches (S5, S6) to override default boot sequence

Disables the DIP switches (S5, S6). Allowing the SOM to boot with default boot sequence

Boot Settings

SD

eMMC

UART

OSPI

USB/DFU

Network

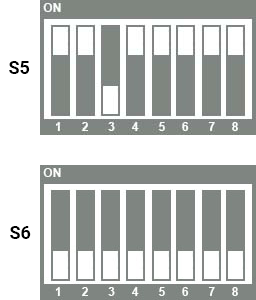

JTAG (No Boot)

../_images/pb-07124_boot-sd.png ../_images/pb-07124_boot-emmc.png ../_images/pb-07124_boot-uart.png ../_images/pb-07124_boot-ospi.png ../_images/pb-07124_boot-usb.png ../_images/pb-07124_boot-network.png ../_images/pb-07124_boot-jtag.png
phyCORE-AM62x Boot phyBOARD-AM62x close-up boot switches
